Building in Climate Zone 7: Very Cold Design

A homeowner planning a self-build in a town inside climate zone 7 faces long, deep freezes, high heating loads, and significant frost risk for foundations. This guide to climate zone 7 explains what those conditions mean for foundations, insulation, ventilation, and heating so DIY builders can make practical, low-cost choices that last. You’ll get recommended R-values, frost-depth guidance, airtightness targets, foundation options, and straightforward HVAC and off-grid strategies tailored for very cold climate building.

TL;DR:

• Prioritize continuous exterior insulation and airtightness to cut heat loss by 30–50% compared with conventional builds.
• Design foundations for frost: use frost-protected shallow foundations or place footings below ~48–60 in (typical frost depth), and insulate under slabs per recommended R-values.
• Install a properly sized HRV/ERV, choose cold‑climate heat pumps with planned backups, and test airtightness early and often.

Understanding Climate Zone 7: What 'very Cold' Means for Builders

Climate zone 7 is classified as very cold under DOE/Building America and ASHRAE climate zoning. Typical winter design temperatures commonly fall between -10°F and -20°F (-23°C to -29°C), though extreme events can reach lower. Annual heating degree days (HDD) for many zone 7 locations commonly exceed 8,000–9,000 HDD (base 65°F), which drives large annual heating energy use. Frost depths in zone 7 often run 48–60 inches (1.2–1.5 m) depending on soil and snow cover; local codes and site surveys provide exact values.

Research-based climate maps and county-level designations are useful when planning a build. The Department of Energy’s guide to climate regions describes the mapping methodology and how Building America defines zones; see the Department of Energy guide to climate regions for reference. ASHRAE’s climatic data also provides design temperatures and humidity metrics for mechanical sizing: ASHRAE climatic data for building design standards.

Implications for DIY builders:

• Foundations must resist frost heave and limit heat loss to protect pipes and slabs.
• Wall and roof assemblies need high whole-wall R-values and continuous insulation to reduce thermal bridges and condensation risk.
• Ventilation must be controlled to manage indoor humidity in tightly sealed envelopes.

Typical regions in zone 7 include northern parts of Minnesota and Wisconsin, higher elevations in New England, and interior mountain valleys. Local variance matters — always confirm county-level data before final design.

Site Planning and Orientation in Climate Zone 7: Minimize Heat Loss

Good siting reduces annual heating demand at low cost. Orient the long axis of the house east-west to maximize usable southern glazing while limiting west glazing that causes afternoon heat loss and glare in winter. Locate the main living spaces and primary glazing on the south side to capture passive solar gain during clear winter days, but size south glazing modestly to prevent excessive heat loss at night.

Microclimate, Wind, and Winter Sun

• Wind protection: Plant or preserve windbreaks on prevailing wind sides; a line of conifers 50–100 feet from the house can cut winter wind speed and lower infiltration losses.
• Snow and albedo: Snow cover increases reflection and can reduce net solar gain; design overhangs to admit low winter sun and shade high summer sun.
• Site slope: Place the house where natural grade sheds water away from foundations and where solar access is not blocked by hills.

Driveway, Access, and Snow Management

• Driveway alignment: Maintain slope away from foundations and locate meltwater discharge so it won’t pool by the foundation wall; see our build update on prepping driveway slab sites for practical tips on coordinating slab and driveway work.
• Snow storage: Plan snow piles away from roof runoff paths and foundation walls to reduce prolonged wetting and freeze-thaw cycles.
• Access for maintenance: Ensure service access for fuel deliveries or backup systems in winter — blocked access can create safety risks.

The DOE’s climate maps explain how orientation and microclimate interact with local solar resources; review the Building science-based climate maps to match site decisions to local conditions.

Foundations, Frost Protection, and Moisture Management for Very Cold Design

Choosing the right foundation in zone 7 balances frost risk, thermal performance, and DIY feasibility.

Choosing Between Slab-on-grade, Crawlspace, and Full Basement

• Full basement: Best thermal buffer, more usable floor area, and easier mechanical routing. Higher excavation and construction costs; good when homeowner needs storage and prefers conditioned basements.
• Slab-on-grade: Lower material cost and simpler constructability. In zone 7, a slab must be insulated (see below) and built with frost protection to avoid heave.
• Crawlspace: Can be ventilated or conditioned. Conditioned crawlspaces with insulated walls reduce heat loss compared to vented crawlspaces; moisture control is essential.

Frost-protected Shallow Foundations (FPSF) and Insulation Placement

• FPSF approach: Uses perimeter insulation extending horizontally to reduce the depth of required footings. Effective in many cold sites and often less costly than deep footings. Use local code guidance and work with an engineer if soils are variable.
• Insulation under slabs: For slab-on-grade in zone 7, expect to place rigid foam under the slab (R-10 to R-15 depending on exact location and slab thickness) and perimeter vertical insulation (R-10 to R-15 extending to the top of the footing). For basements, continuous exterior wall insulation of R-10–R-15 is common to reduce thermal bridging.

Recommended frost-depth and slab-edge values

Moisture control: drainage and vapor barriers

• Perimeter drain and capillary break: Install footing drains, gravel, and a capillary break under slabs. Use a high-quality damp-proofing membrane on basement walls.
• Basement vapor barrier: Install a continuous polyethylene or approved vapor control layer on basement floors and seal seams for a capillary break; see our basement vapor barrier guide for step-by-step details.
• Alternative foundations: For readers considering nonstandard materials, review the pros and cons of limecrete foundations — they can change moisture and thermal strategies.

When to consult an engineer

• Use an engineer for high water tables, clay soils, steep slopes, or if you plan deep footings or unusual foundation systems. FPSF designs must be validated for local frost and soil conditions.

Include regional climate and building stock context by reviewing county climate zone maps and CBECS-derived zone groupings: the CBECS climate maps provide broader context for design choices.

Wall and Roof Assemblies: Insulation, Air Barriers, and Thermal Bridges

Wall and roof assemblies in zone 7 must combine high R-values, moisture management, and continuous air-barrier strategies.

Recommended Assemblies for Walls: Continuous Exterior Vs. Cavity-first

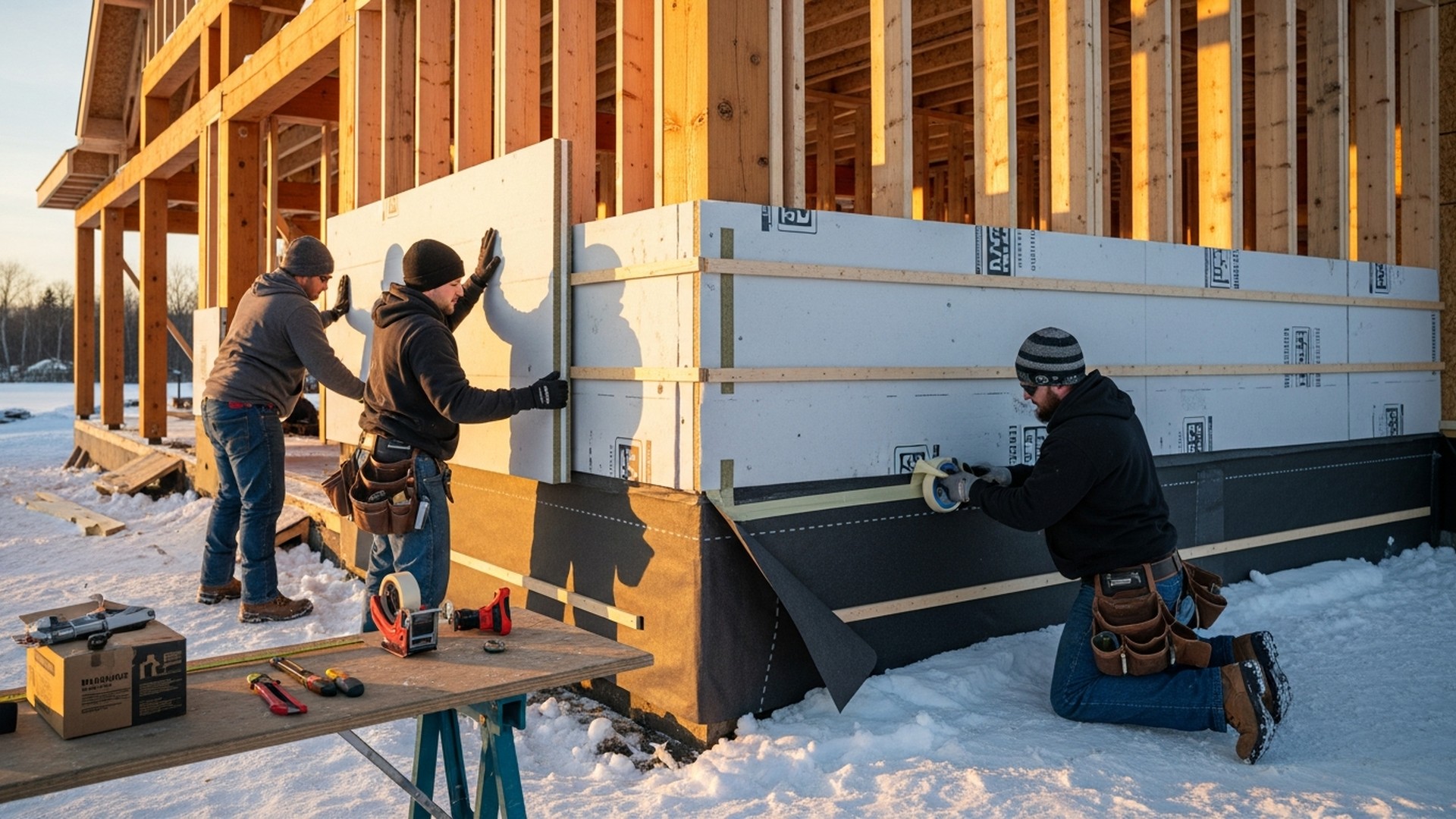

• Continuous exterior insulation (CI) + cavity fill: Preferred for cold climates because CI keeps sheathing warm, lowers condensation risk, and reduces thermal bridging. Typical target whole-wall effective R-values for zone 7 start at R-40–R-50 for walls depending on project goals.
• Cavity-first (thicker cavities): Easier for some DIYers using advanced framing or double-stud walls with dense-packed cellulose; whole-wall R-values can reach R-40–R-60 but watch for cold sheathing and condensation potential unless an interior vapor retarder is managed.

Roof and Attic Strategies: Cold Vs. Conditioned Attics

• Conditioned attic/cathedral ceiling: Insulate along the roofline using continuous exterior plus cavity insulation to keep roof sheathing warm and reduce ice dam risk.
• Cold attic with high insulation at the ceiling plane: Still workable if ventilation and air sealing are excellent and insulation depth is adequate (R-60+ for ceilings is common in zone 7).

Thermal Bridge Mitigation and Fastener/connector Details

• Continuous sheathing + CI reduces bridging: Use exterior rigid foam or mineral fiber boards over sheathing and tape seams for air barrier continuity.
• Insulated headers and thermal breaks at rim joists: Use header insulation or structural insulated panels (SIPs) in critical spots; insulate rim joists with rigid foam or closed-cell spray foam where appropriate.

Insulation comparison table

For safety and alternatives, our spray foam alternatives article explains trade-offs between spray foam and other materials. For roof-edge CI strategies, see exterior roof insulation.

This video provides a helpful walkthrough of the key concepts:

The video above demonstrates exterior CI installation, taped air-barrier seams, and common detailing at corners and window openings. Watch it before cutting panels so you understand best practices for continuous air and thermal control.

Air barrier continuity

• Seal sheathing seams, penetrations, and transitions with compatible tapes and liquid membranes. Use a single primary air barrier plane where possible (exterior CI, sheathing + tape, or interior gypsum with taped joints) and tie flashings and window installations into that plane.

Target R-values

• Walls: Effective whole-wall R-40–R60 depending on budget and design.
• Roofs/ceilings: R-60+ for attic ceilings; cathedral assemblies R-40–R60 with exterior CI.
• Basement walls: R-10–R-20 continuous exterior or equivalent interior-plus-slab strategies.

Windows, Doors, and Airtightness: Detailing for Extremely Cold Winters

Windows and doors are major weak spots for heat loss. Prioritize performance and airtightness in zone 7.

Choosing High-performance Windows and Doors for Zone 7

• Window metrics: Target U-factor ≤ 0.20 (approx. R-5) for primary windows in occupied spaces; passive-solar layouts may accept slightly higher SHGC (0.30–0.40) on the south side and low SHGC on east/west.
• Frame choice: Fiberglass, wood-clad, and thermally broken aluminum frames perform well. Triple glazing with low-e coatings and inert gas fills is standard for very cold climates.

Flashing, Jambs, and Air-sealing Details

• Use a sill pan and a fully taped rough opening tied into the exterior air barrier. Apply continuous foam insulation around frames while avoiding compressing the glazing spacer. For full passive-house quality sealing, follow the techniques in our window sealing for passive homes guide.

Testing Airtightness and Common DIY Fixes

• Blower-door testing: Aim for 1.0–2.5 ACH50 for high-performance DIY projects; true passive-house targets (~0.6 ACH50) are difficult without professional detailing. Testing early (post-envelope, pre-finish) saves labor by identifying missed penetrations.
• DIY fixes: Seal electrical boxes with gaskets or sealed box extenders, use acoustic/low-expansion foam around penetrations, tape sheathing and membrane seams, and add weatherstripping to doors.

For practical air-sealing actions on existing homes, see our air sealing DIY guide.

Ventilation and Indoor Air Quality in Zone 7 Passive Homes

Controlled ventilation is essential in very cold, airtight homes to manage moisture, CO2, and pollutants without wasting heat.

Heat Recovery Ventilation (HRV/ERV) Basics and Sizing

• HRV vs ERV: HRVs transfer sensible heat between exhaust and intake streams and are preferred in very cold, dry climates to maximize heat recovery. ERVs also transfer moisture and can help in moderately humid sites.
• Sizing rule of thumb: For most homes, size ventilation to meet ASHRAE 62.2 for fresh-air requirements. As a quick guide, plan ~0.35 ACH or use the formula: (Bedrooms × 7.5 CFM) + (Floor area × 0.03 CFM) and validate with ASHRAE 62.2. For airtight passive-ish homes, designers often use continuous flow of 40–80 CFM for small homes; verify with a mechanical designer.

Balancing Airtightness and Fresh Air in Winter

• With airtight envelopes, a balanced HRV allows minimal sensible heat loss. Ensure intake ducts are placed away from exhaust and avoid routing through cold attics where condensation can occur. The ASHRAE climatic dataset helps size systems for design days: see ASHRAE climatic data for building design standards.

Simple Maintenance and DIY-friendly Ventilation Approaches

• Choose systems with accessible filters and service points. Clean filters quarterly in dusty conditions, and check condensate drains in winter to prevent freeze-ups. For very small structures, a high-quality bath/kitchen exhaust combined with periodic airing works short-term, but an HRV/ERV is recommended for long-term IAQ and energy performance. For design guidance, see our linked passive house ventilation resource.

HVAC, Heating Strategy, and Off-grid Options for Zone 7

Cold-climate heat pumps have changed options in zone 7, but design must account for low-temperature performance and backups.

Heat Pumps in Very Cold Climates: Cold-climate Models and COP Expectations

• Modern cold-climate air-source heat pumps can maintain useful COPs down to -15°C (5°F) to -25°C (-13°F), with COPs often 1.8–3.0 at -15°C depending on model. Ground-source heat pumps offer steadier performance but higher installation cost.
• Sizing: Right-size for heat-loss at design temperature; do not oversize massively — heat pumps modulate better than older systems. For DIYers, consult manufacturer sizing tools and confirm with a heating-load calculation.

Backup and Hybrid Systems: Wood Stoves, Propane, or Resistive Backups

• Hybrid approaches: Combine a heat pump for base load and a high-efficiency wood stove or propane furnace for extreme cold or backup. This reduces generator/battery needs for off-grid setups and provides redundancy.
• Electric resistance backup: Simple but costly if used frequently; appropriate as a rare emergency backup.

Solar + Battery Basics for Cold-region Heating Support

• Solar output drops in winter; orientation, tilt, and snow shedding matter. For small home backup, size batteries for critical loads (heat pump backup controls, communications) and plan larger arrays for sustained heating support.
• For tiny homes or partial off-grid systems, our tiny house solar sizing article covers system sizing; for whole-house off-grid planning see the off-grid home guide. If using solar inverters and batteries, consult the solar [inverter troubleshooting]( /blog/5-common-solar-inverter-issues-and-fixes) resource when configuring systems for low-temperature operation.

Practical notes

• Keep heat pump outdoor units elevated and shielded from drifting snow and ice build-up.
• Plan for condensate lines and freeze protection for outdoor-mounted equipment.
• Consider generator capacity for electric furnace or pellet stove ignition during extended outages.

Cost, Materials, and Builder Tips for Budget-conscious Diyers in Zone 7

Key points — top actionable takeaways

• Continuous exterior insulation: Reduces thermal bridging and lowers heating by 20–40% relative to cavity-only walls.
• Air barrier continuity: Sealing at sheathing transitions and windows reduces infiltration losses substantially.
• Foundation frost protection: Insulate and/or use FPSF to avoid deep excavations and long-term heave risk.
• HRV/ERV early: Plan ventilation during framing to simplify duct runs and balances.
• Cold-climate heat pump + wood backup: Balances efficiency and reliability at modest cost.
• Right-size windows: Use higher-performance windows on occupied exposures and smaller units elsewhere.
• Drainage first: Proper site drainage and perimeter drains avoid expensive moisture repairs.
• Test and seal: Perform a blower-door test and fix leaks before finishes lock them in.

Material Choices: Cost Vs. Performance Table

Prioritizing Upgrades: Where to Spend for Biggest Gains

• Spend first on continuous insulation and air sealing where it closes thermal bridges. Next, invest in windows and a balanced ventilation system. High-end wall assemblies and heat-pump upgrades come after foundation and envelope basics.

Sequencing for a DIY build

1. Site prep and drainage
2. Foundation and frost protection
3. Framing and continuous exterior insulation
4. Windows and door installation with taped air barrier
5. Mechanical rough-ins and HRV/ERV installation
6. Blower-door testing and air-sealing corrections
7. Insulation completion and finish work
8. HVAC commissioning and system testing

Common DIY mistakes

• Skipping exterior CI in favor of thicker cavity fill without addressing thermal bridging.
• Installing HRV ducts after finishes, which increases labor and compromises placement.
• Under-insulating slab edges or omitting capillary breaks.

Example budgets (illustrative)

• Tight budget (~$150k shell): Dense-packed double stud walls, small south-facing glazing, compact heat pump with wood stove backup.
• Moderate budget (~$250k shell): Exterior CI R-10 + cavity R-30 wall, triple-glazed windows U~0.18, HRV, cold-climate heat pump.
• Higher performance (~$350k shell): ICF foundation, SIP panels or thick CI walls to R-60 wall equivalent, full passive-type airtightness testing and commissioning.

For detailed cost breakdowns and choices on low-impact materials, see our passive house cost breakdown and sustainable materials guide. If curious about mass-thermal alternatives, the cob house basics resource discusses suitability for cold climates.

The Bottom Line

Builders in climate zone 7 should prioritize continuous exterior insulation and airtightness, design foundations to resist frost, and plan balanced ventilation early. Choose cold‑climate heat pumps with a backup (wood or resistive) for reliable winter performance, and test airtightness during the build to catch leaks. For next steps, review the linked foundation, ventilation, and material guides above and confirm local frost depths and design temperatures before finalizing plans.
